Drum type shot blasting machine

tumble title drum type surface shot blasting machine

tumble title drum type surface shot blasting machine

-Big productivity

-Good cleaning efficiency.

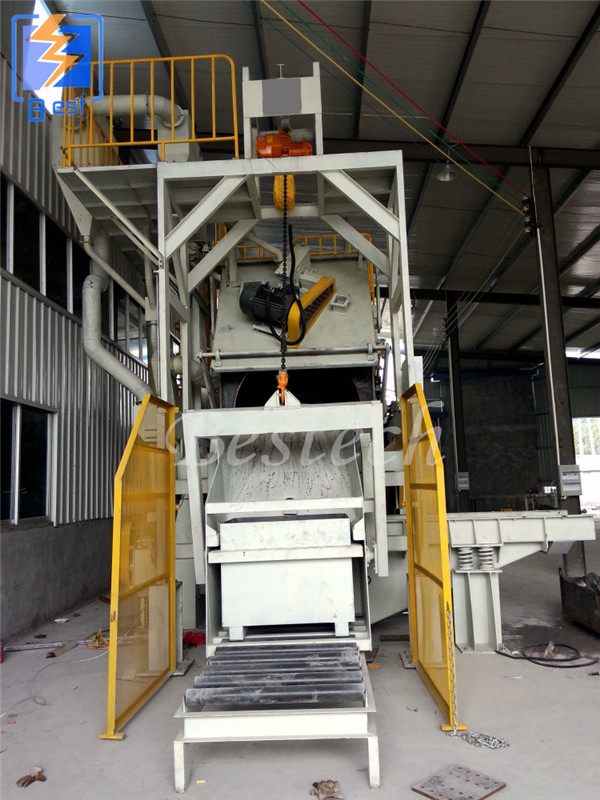

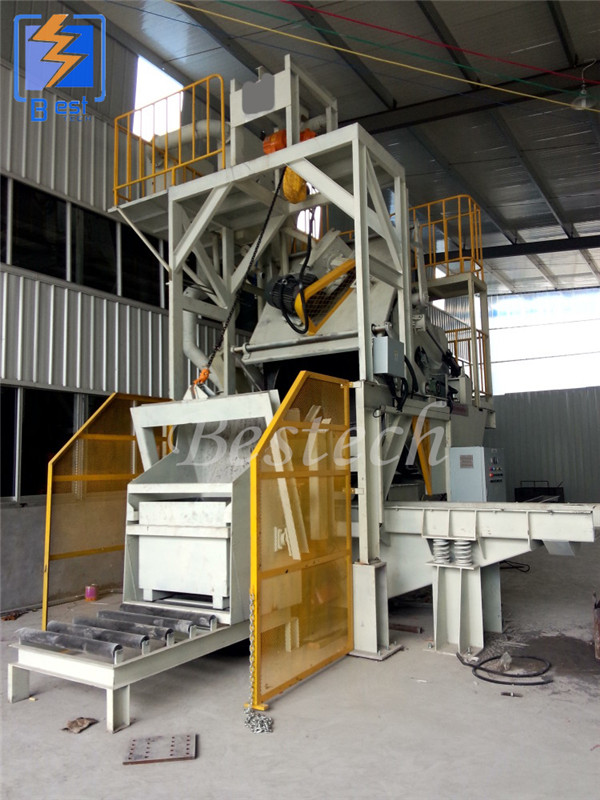

This inclined drum shot blasting machine is one of the standard series cleaning equipment developed by our company.The machine can be used to clean the work piece which is easy to fall over and not easy to break up the non-brittle parts and the mold core is not deep casting, cone forging and welding parts, remove the sand and oxide on the surface of the work piece.The whole machine adopts PLC control, high degree of automation, can work alone, can also be used for wiring.

Technical parameters

model		QGT15
processing capacity	capacity	0.65 m3 each time
	total weight	1200 kg each time
	max weight of single work piece	40 kg
	max size of work piece	550 mm
shot blasting wheel	motor power	30 kw
	Steel shot projected quantity	480 kg/min
machine dimension	width	3745mm
	length	5415mm
	height	7103mm
	discharge height	1350mm
dust collector	Casting remove sand	75 m3/min
	descale	50 m3/min
