Roller Conveyor Blasting Machine

Q69 roller conveyor pass type shot blasting machine

Q69 roller conveyor pass type shot blasting machine

-Suitable for cleaning steel plate , steel structure and H beam .

-Automatic operation

Roller Conveyor Shot Blasting Machine

This roller conveyor shot blasting machine is used for surface treatment of steel plates, steel profiles, steel pipes, steel rods, steel structure and other workpieces with features of extensive use of cleaning varieties, it with good effect, simple operation and saving labor. Environmental protection and other indicators all meet the national standard, especially suitable for continuous operation.

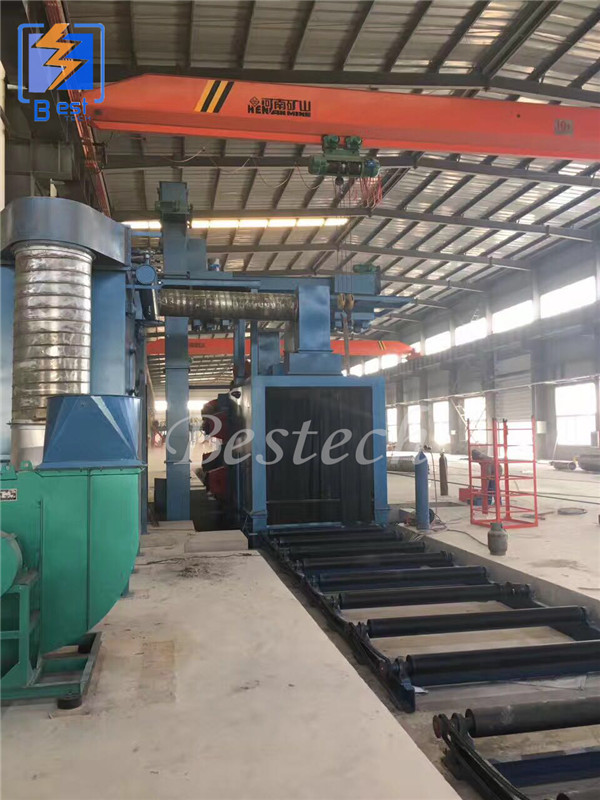

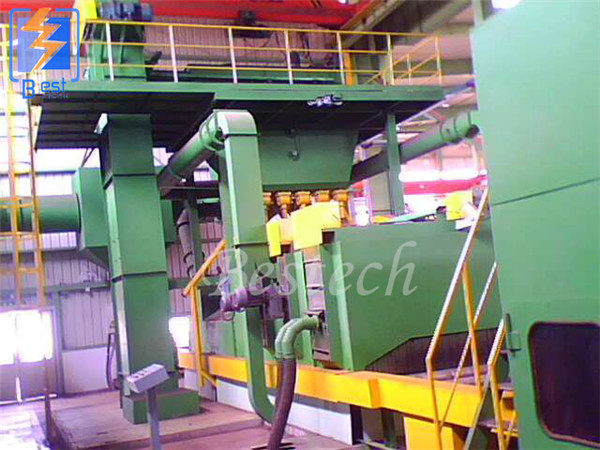

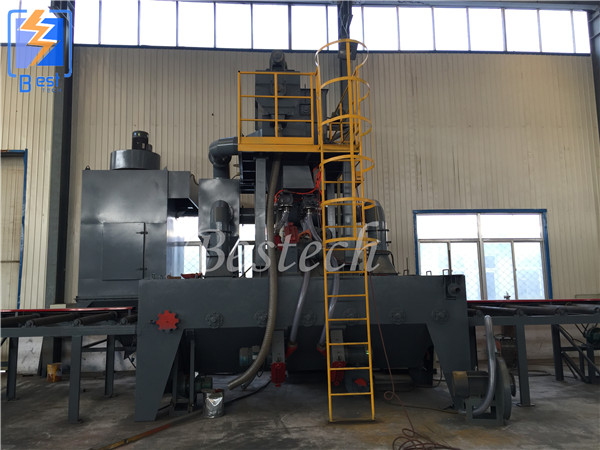

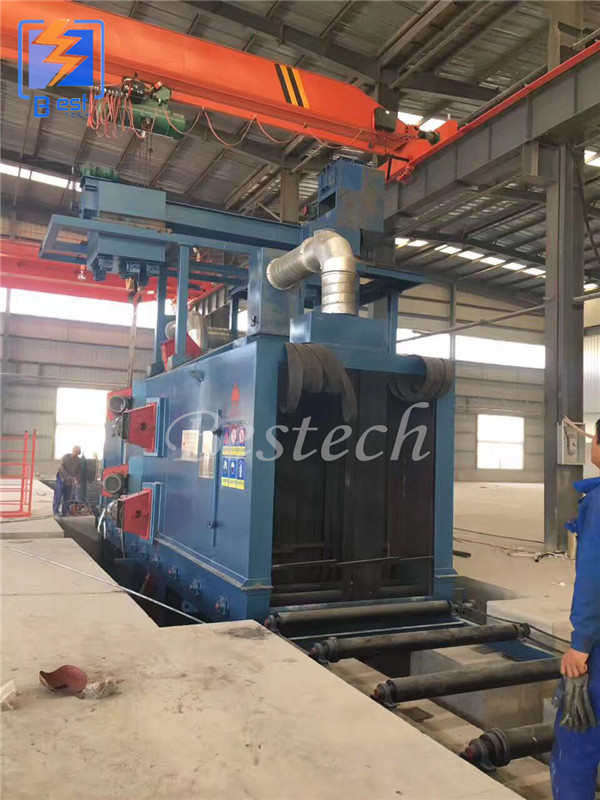

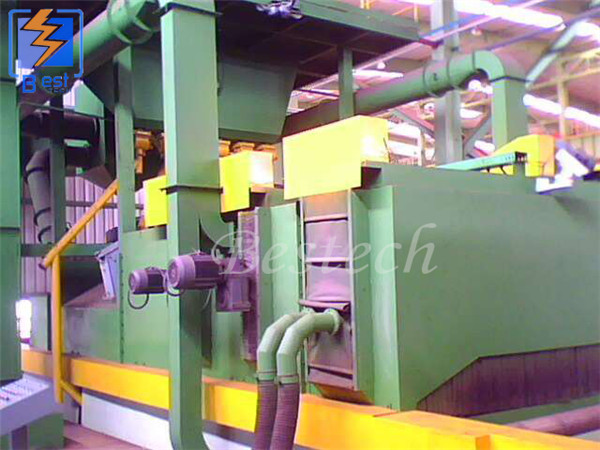

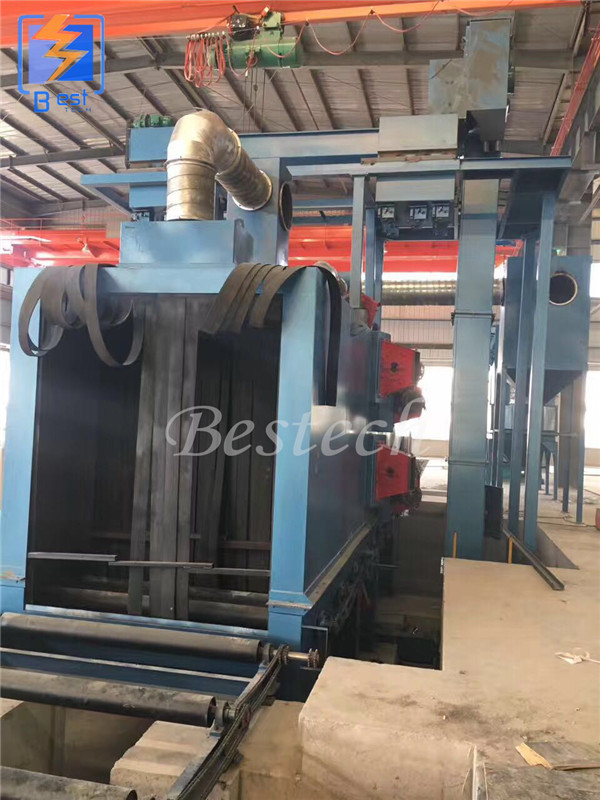

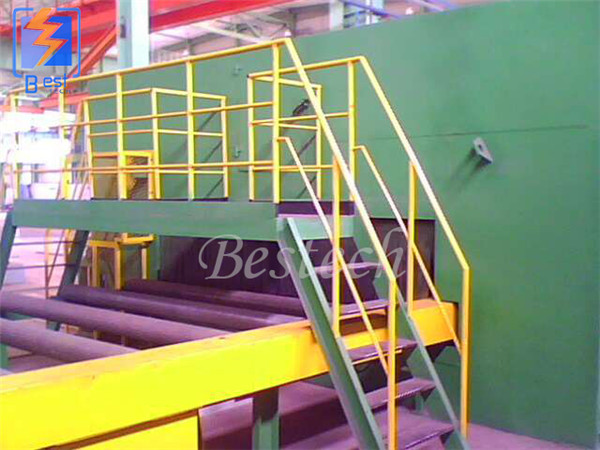

The main principle of the roller shot blasting machine is that the delivery system will transfer the workpiece to the closed blast cleaning chamber through a roller conveyor, the high-speed rotation impeller blades will accelerate the shots thrown to the surface of the workpiece to have removed the rust, oxide skin and dirt of the workpiece.

The high strength roller brush, shots receiving spiral, and high-pressure blowpipe will clean up the dust and shots on the surface of the work part, then sent out them through the roller conveyor to finish the cleaning and strengthening of the work part. The roller conveyor blast machine will eliminate the stress, improve the surface finish quality and anti-corrosion performance of the steel structure and steel.

Parameter	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
The effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
Dimesion of inlet opening	1600*800	1200*400	1700*400	2200*400	2700*800	3200*800	4200*400
The length of cleaning workpiece(mm)	1200-12000	1200-1600	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
The speed of conveyer(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thickness of cleaning steel sheet (mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Shot ball flow rate (kg/min)	4*120	4*250	4*250	6*250	6*250	6*360	8*360
The shot ball first loading (kg)	4000	4000	4000	4500	4500	8000	11000
Roll brush adjusting height (mm)	200	200	350	450	600	850	900
Air capacity(m3/h)	22000	17560	19000	19550	27758	28050	38000
Total power (kw)	90	78.3	113.5	156.6	204.8	224.55	293.6
